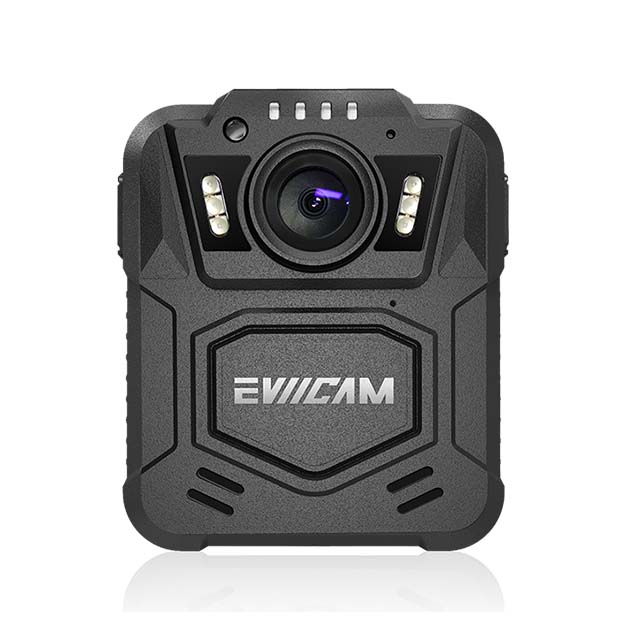

Mini-sized Body Worn Camera DX05

■ Mini size

■ 160° wide angel lens

■ Built-in GPS and Wi-Fi .

■ IP66

downloadfile

Summary Parameter Characteristic Accessories


SPECIFICATION

Specs Chipset Ambarella
Sensor 4M CMOS SENSOR
LCD NO
Lens 155° wide angle lens
Memory Default 32G (up to 64G)
Speaker built-in
Microphone built-in
USB No
Multifunction interface 12Pin contactor
Wifi built-in
Video&
Audio
Video resolution 2304X1296   30fps
1920X1080   30fps
1280X720    60fps
1280X720    30fps
848X480     30fps
Video(compression) format MOV(H.264)
Continuous video recording Around 12HWVGA
Function LED indicator power-on,memory state,recharge,video/audio recording,low battery,GPS/WIFI statered,yellow,green,orange,blue,closed by software
Night vision distance strengthen energy-saving IR LED with 8 meters visual range
IR cut way auto
Playback playbacked by APP on mobile phone with WIFI or download to PC
Watermark Year/Month/Date/Hour/Minute/Second
Superimposed information device ID,user ID
OSD language Englishsimple Chinese
Video format MOV
One-key operation Yes
GPS optional
Pre-record  Yes
Post-record Yes
Live video transmission implement by APP with WIFIoptional
Button  power key/video recording key/WIFI key
Structure Drop text 2m
Clip crocodile clip
Waterproof level IP66
Size(mm) 69.5*58*31.6mm
Weight 120g
Battery Battery capacity 3150mAh
Recharging time around 6H
Accessories CD PC software,user manual
Single charging station Yes
Adaptor 5V/2A
