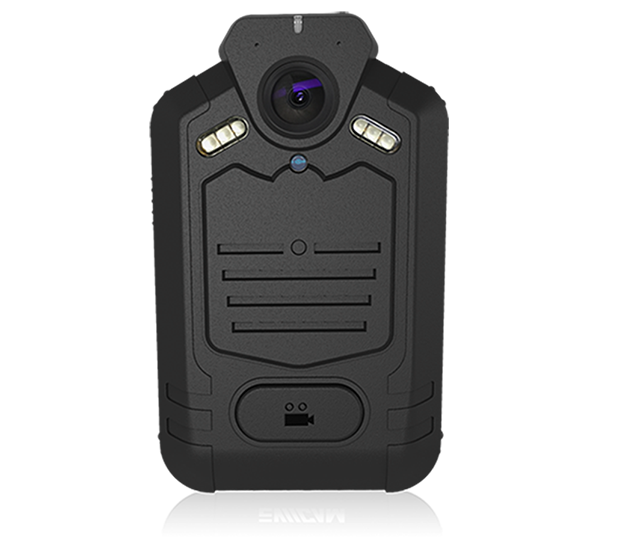

Body Worn Camera DX01

■ DX01 Police Body Worn Camera is a new generation police equipment developed by us,which is the most advanced and stable.

■ Overmolding technique

■ The super wide angle lens and new generation of image processing chips made the images and perspectives in a perfect status.

downloadfile

DX01 SPECIFICATION
I need to consult ＞
Summary Parameter Characteristic Accessories





SPECIFICATION

Specs Chipset Ambarella
Sensor CMOS sensor
LCD 2-inch LCD
Lens F/NO=2.5, 155° wide angle lens
Waterproof&dustproof  IP66
Drop test 2M
Memory Default 32G (up to 128G)
Working temperature -30℃~55℃
Storage Temperature -40℃~55℃
Interface
&
Function 		Speaker Built-in
Microphone Built-in
Earphone With walkietalkie
Audio/video input interface Mini USB 2.0
Built-in  WIFI Optional
Live video transmission Work with Wi-Fi
On-vehicle function Fixed on vehicle with recharge and intercom function
Walkietalkie compatibility Analog compatible
Photo Output pixel 33MP max
Shutter Electronic
Focusing FF (F.No.=2.5)
Focal distance 50cm-∞
Exposure control Auto
File format JPG
Video
&
Audio 		Video resolution SHD:2304X1296(30fps)
FHD:1920X1080(30fps)
HD:1280X720(60fps)
HD:1280X720(30fps) (default)
WVGA：848 x480（30fps)
Video (compression) format MOV(H.264)
Continuous video recording time Around 8 hours (HD)
Around  10 hours (WVGA)
Audio format in audio mode WAV
Continous audio recording time Around 10 hours
Operation
&
UI 		LED power-on, recharge, video recording, audio recording
Night-vision distance Strengthen energy-saving IR LED with 15 meters visual range
Photosensitive reaction working with  automatical IR cut
IR switching way Auto
Playback All files playback
Photo taking while recording YES
Watermark Year/Month/Day/Hour/Minute/Second
OSD languages English/Chinese
File generated format PICTxxxx. JPG/WAV/MOV
Size Size(mm) 94mm(L)×60mm(W)×30mm(H)
Weight Around 141g(battery included)
Power Supply Built-in battery 2800mAh
Recharging time around 5 hours
Standby time around 20 hours
Recharging way adapter/USB/car charger
Cable USB cable
Accessories Standard Crocodile clip/adapter/USB cable/CD(user manual included)/Quick operation guide
Optional Charging station/ car mount/ external camera



Walkietalkie Connection Line

Car Mount

External Camera
